MK III GREASE METER

APPLICATIONS

  • Accurate delivery of grease according to bearing manufacturers’ specifications
  • In line design for installation into almost any automatic system for dispensing lubricant or monitoring grease flow.

FEATURES

  • Durable light-weight construction
  • Easy to read LCD display
  • Resettable counter – at the touch of a button
  • Selectable metric or imperial units (cm³, gram, oz or fluid oz)
  • Mounts on to most existing greasing equipment
  • Custom calibration for special greasing needs
  • Advanced oval gear metering technology

OPTIONS

  • Grease gun valve
  • Greasing pipe
  • Flexible greasing hose
  • Swivel fitting
  • Coupler

SEE HOW THE Mk III GREASE METER WORKS

SAVE UP TO 30% GREASE

EXTEND BEARING LIFE

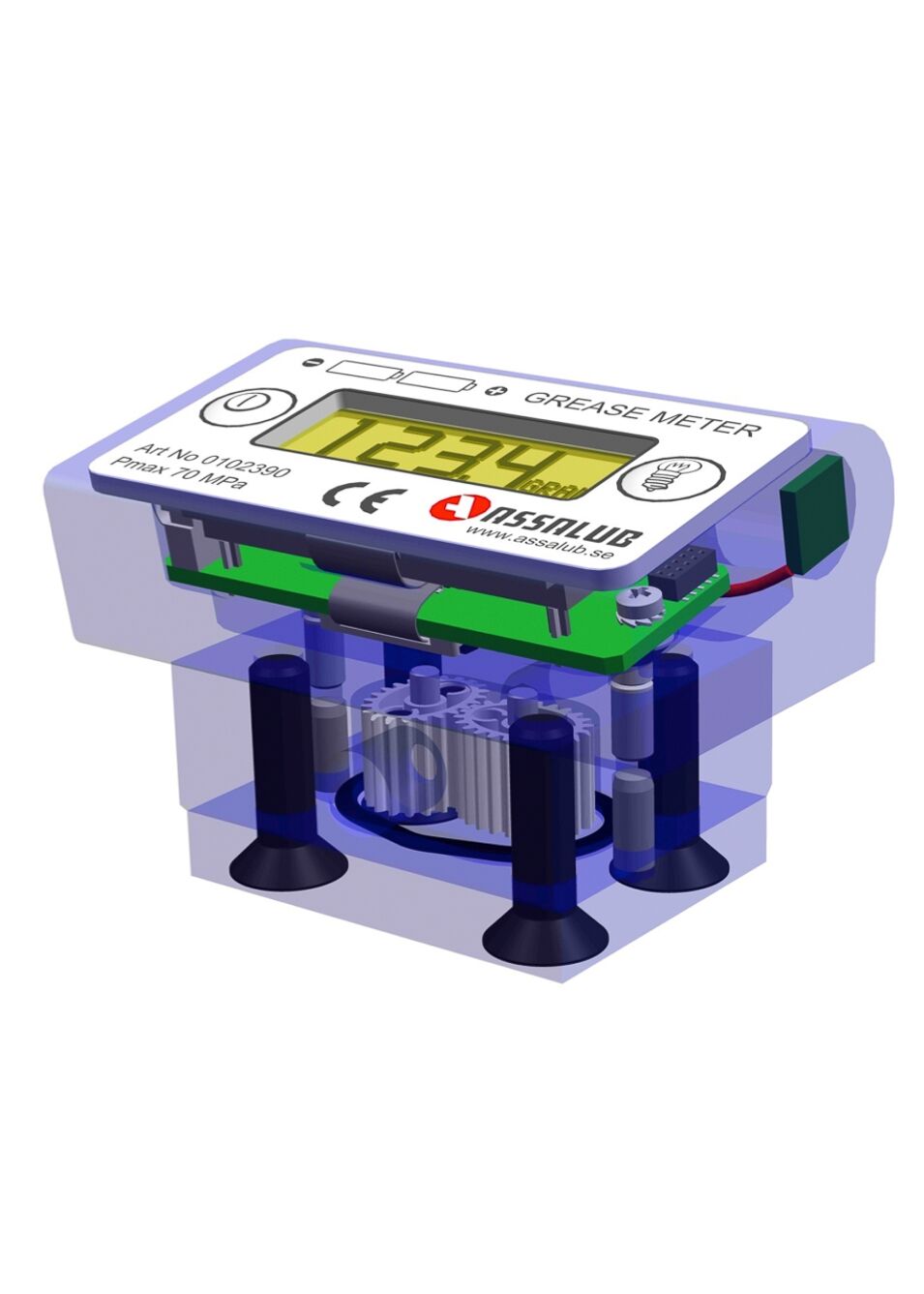

HOW THE Mk III GREASE METER WORKS

It is difficult to dispense the correct amount of grease into a bearing by hand using a standard grease gun and almost impossible with an electrically or pneumatically driven pump. Too little or too much grease can shorten bearing life, leading to breakdowns and costly stoppages. With the ASSALUB Grease Meter, it is possible to grease with accurate volumes of lubricant to bearing manufacturers‘ recommendations. This increases bearing life, reduces stoppages and can save over 30% of grease usage. Portable, light weight and with a durable battery, these grease meters can be mounted on virtually any manual grease gun or pump. Also compatible with grease guns fed by an external barrel pump or centralized system. A simple push button resets the meter to zero and subsequent amounts pumped show clearly in the LCD counter. Results can be expressed in cm³, oz, g or fl oz. The pulse meter can be introduced into almost any automatic system for dispensing lubricant or monitoring grease flow.

TECHNICAL SPECIFICATIONS


MODELMKIII-0102525-2Extra battery 906395Extra battery legacy version 904591
HOUSINGANODIZED ALUMINUM
SealsNeoprene rubber
Maximum working pressure10,000 psi (700 bar)
Maximum flow1,000 cm³/min
Measurement accuracy+/-3% up to 4,300 psi (300 bar)
Display4 digit LCD display 9 mm digit height
Connections1/8 – 27 NPTF female
Battery1pc AA battery (1.5 V)AA (1.5 V)LR1
Weight0.66 lb (0.3 kg)
Optional accessoriesManual grease gun, grease pipe, grease hose(s), swivel fitting

OPTIONS AND ADD-ONS

Grease Gun Valve

Greasing Pipe

Greasing Hose

Swivel Fitting
