ECC IN-LINE PROCESS FLOW METER

A COST EFFECTIVE MODEL

DATA SHEET ORDER GUIDE

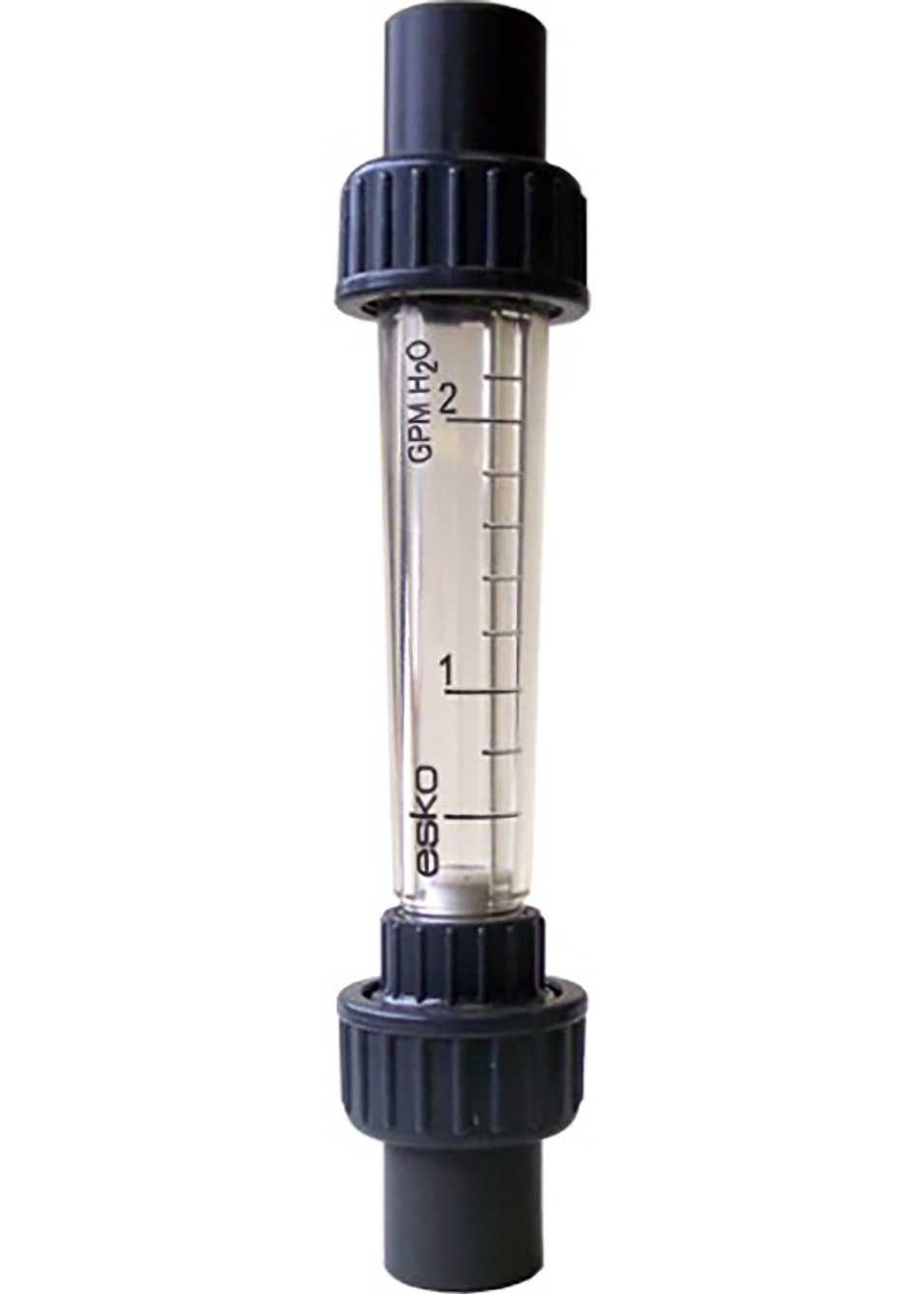

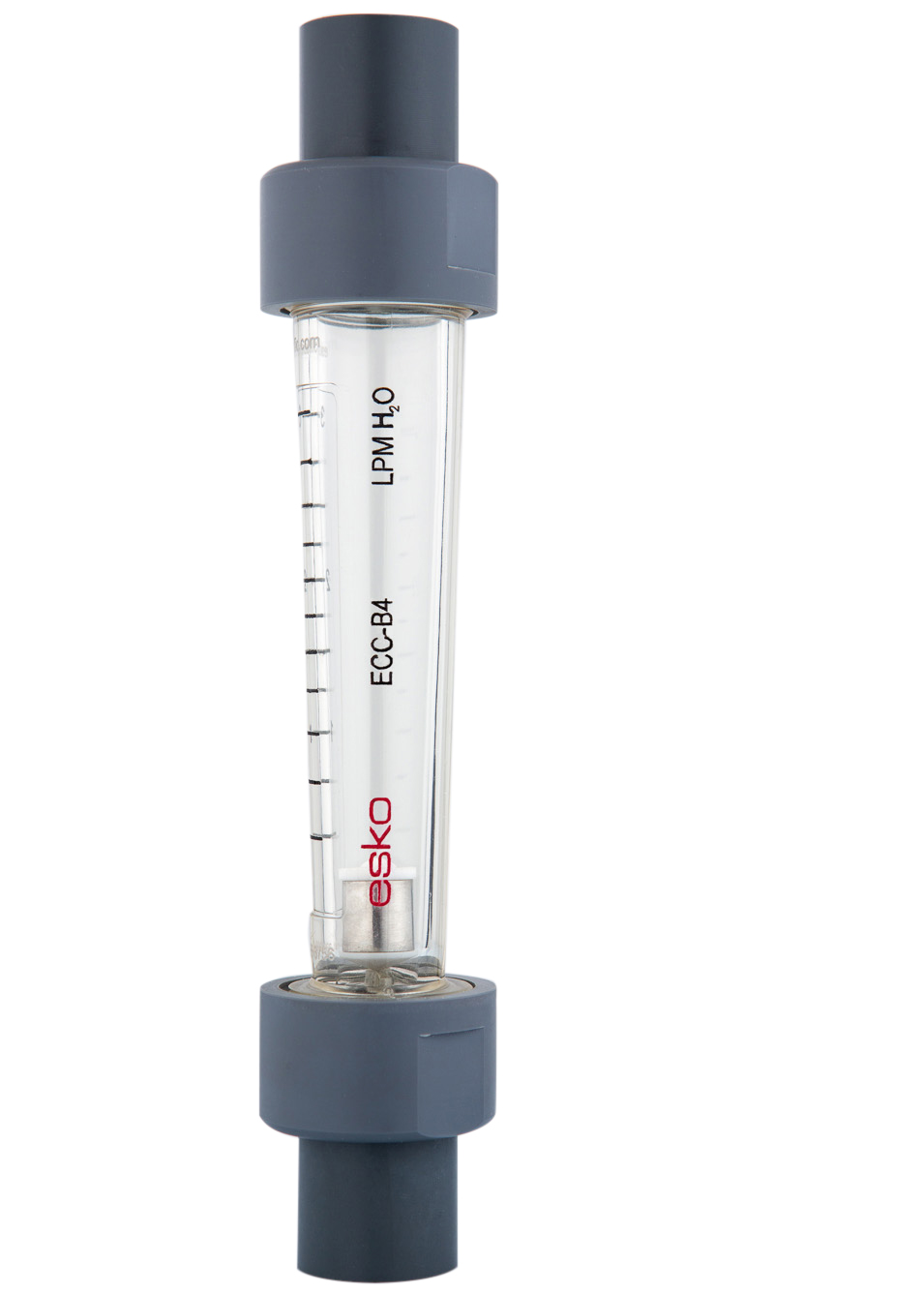

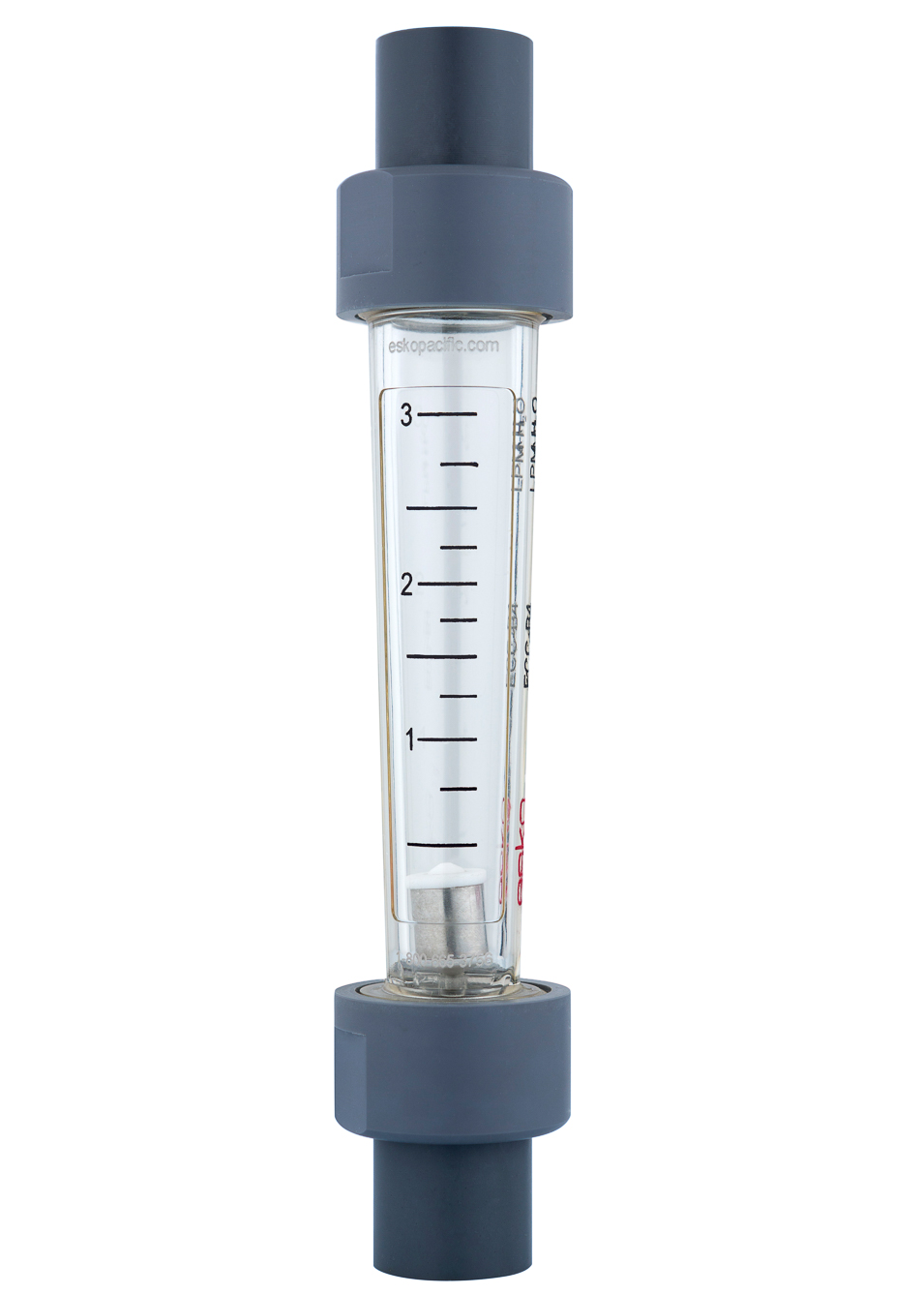

ESKO Model ECC In-line Flow Meter

APPLICATIONS

  • Process industry
  • Chemical industry
  • Water treatment plants
  • General liquid & gas measurement

FEATURES

  • Low cost
  • Good corrosion resistance
  • Easy maintenance and mounting
  • Socket type or threaded

OPTIONS

  • Polysulphone (PSU) flow tube
  • Nitrile seals standard
  • Viton® or EPDM seals optional
  • BSP thread
  • Calibration for non-standard liquids and gases
  • Special materials for high temperatures and corrosive chemicals

FOR MEDIUM FLOWS

Reliable measuring and monitoring of medium-sized flows

LIQUIDS AND GASES

In process industries

IN-LINE PROCESS SOLUTIONS

This budget-friendly solution for process industries with general liquid and gas flows is available in three size choices: small ECC, medium (Model EHC) and large (Model EBC).
These are variable area tapered tube meters typically with stainless steel floats and guide rods, and clearly engraved scale markings.
The smallest of the series have ribbed flow tubes which allow for free floating flow indicators, while larger ones incorporate a guide rod for the float.
All three size choices feature practical PVC adapters and Grilamid or PSU flow tubes to withstand high temperatures and/or corrosive process chemicals.
The functional construction, simple maintenance and in-line mounting, and light weight design make this type of flow meter a popular and cost-effective choice
As with all Esko flow meters, custom calibration for non-standard liquids and gases is also available.

TECHNICAL SPECIFICATIONS

MODELECC
METERING TUBEGRILAMID® TR 55 OR POLYSULPHONE PSU
AdapterPVC (optional CPVC, steel)
Float material(s)SS316 / Delrin
O-ring sealsNitrile (optional Viton® or EPDM)
Maximum pressure145 psi 68°F (20°C)
Maximum temperature122°F / 50°C @ 30 psi
Connections1/2″ NPT, BSP or socket
Weight0.3 lb (0.12 kg)
Build optionsFlow tube material, O-ring seals, threads, calibration for non-standard liquids and gases

OPTIONS AND ADD-ONS

FLOW TUBE

  • Grilamid®
  • Polysulphone

O-RINGS

  • Nitrile
  • Viton®
  • EPDM

Adapter

  • PVC
  • CPVC
  • Steel

Connection

  • 1/2″ NPT
  • 1/2″ BSP
  • Socket
